AOPico Montauk Picosecond UV Lasers

Features & Benefits

AOPico Montauk-355 picosecond UV lasers feature a world-leading third-harmonic generation crystal assembly process, a fully automatic crystal indexing technology, and a beam compensation technology.

AOPico Montauk picosecond UV lasers feature excellent beam quality (M²< 1.1), low divergence, and small astigmatism with beam roundness is up to 95%. The pulse stability and power stability of the laser are excellent. The output power of the laser is in the range from 15 W to 50 W. Laser models with an output power above 15W adopt a more compact all-in-one design.

The lasers can be controlled via external gate/trigger signals. Both high/low level gate and rising / falling edge trigger are available. The rising/falling edge trigger mode enables Pulse-on-demand (POD) functionality. In addition, the output power of the laser can be controlled through external analog voltage signal. The lasers also have the functions of automatic crystal indexing function, power display, laser status real-time monitoring, and intelligent diagnostics. Through the use of various internal sensors, the laser status is completely monitored, which enables remote trouble- shooting and recovery. The user experience is greatly improved as the laser is user-friendly.

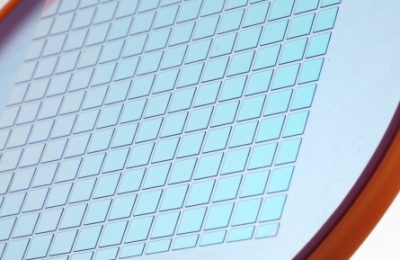

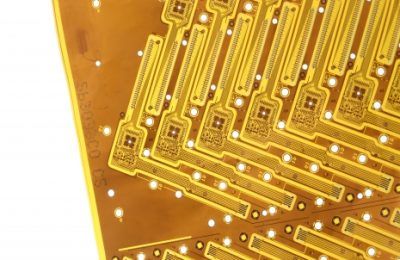

With these advantages, AOPico Mantauk picosecond UV lasers are the best choice for the applica- tions of OLED cutting and drilling, PI/FPC cutting, and mobile phone antenna cutting.

AOPico 355

AOPico Montauk 355
Specification  5W-500K 15W-500K 30W-1000K 50W-1000K
Wavelength (nm) 355
Average Power (Watts) >5W >15W >30W >50W
Energy (µJ) >10@500kHz >30@500kHz >30@1000kHz >50@1000kHz
Specified Repetition Rate(kHz) 500 500 1000 1000
Repetition Rate (kHz) 300-1000 300-1000 500-2000 500-2500
Pulse Width (ps) <12
Beam Quality (M²) <1.1
Beam Roundness (%) >90
Beam Diameter (mm) 3~4 3~3.5
Beam Divergence (mRad) <2
Point Stability (µRad/°C) <20
Polarization Ratio 100:1 Linear, Horizontal
Pulse-to-Pulse Stability (% RMS) <2
Average Power Stability (% over 12 hours) <3
Cold Start Warm-Up (mins.) <40
Standby Warm-Up (mins.) <15
Operational Temperature Range (°C) 15-35°C
Operation Humidity Range (%) 20 to 80, non-condensing
Storage Temperature Range (°C) -20 to 50
Storage Humidity Range (%) 20 to 80, non-condensing
Input Voltage (VDC)/Rated Power(W) 24/600 24/1000
Communication RS232
Cooling Water
