AOPico Montauk Picosecond Green Lasers

Features & Benefits

The all-in-one design makes the laser more compact and reduces the total weight. It saves space for installation on the customer side, lowers the integration cost and simplifies the installation process. The water-cooled design allows the laser to work reliably in various harsh and extreme environments and makes the laser to be the ideal candidate for the 7×24 non-stop production needs.

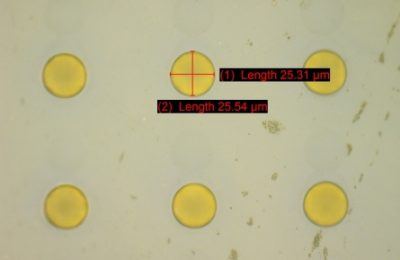

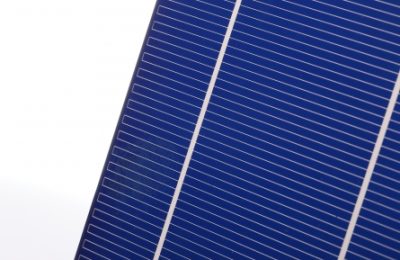

The output power of 5W, 20W, 30W, and up to 60W are available for selection. The pulse width is around 10 ps across the repetition rate range of 500k to 1500k. With pulse energy of 40 μJ, burst mode and PoD function, it is the perfect candidate for various application areas, including optical filter cutting, solar cell scribing, ITO scribing, and so on.

AOPico 532

Specification 30W-1000K 60W-1000K 80W-400K
Wavelength (nm) 532
Average Power (Watts) >30  >60 >80
Energy (µJ) >30@1000kHz >60@1000kHz >200@400kHz
Specified Repetition Rate(kHz) 1000
Repetition Rate (kHz) 100 ~ 2500 100~2500 100 ~ 2500
Pulse Width (ps) <12
Beam Quality (M²) ≤1.1
Beam Roundness (%) >90
Beam Diameter (mm) <3
Beam Divergence (mRad) <2
Point Stability (µRad/°C) <20
Polarization Ratio 100:1 Linear, Vertical
Pulse-to-Pulse Stability (% RMS) <2
Average Power Stability (% over 12 hours) <3
Cold Start Warm-Up (mins.) <40
Standby Warm-Up (mins.) <10
Operational Temperature Range (°C) 15-35°C
Operation Humidity Range (%) 20 to 80, non-condensing
Storage Temperature Range (°C) -20 to 50
Storage Humidity Range (%) 20 to 80, non-condensing
Input Voltage (VDC)/Rated Power(W) 24/1000
Communication RS232
Cooling Water

AOPico Montauk – 532
