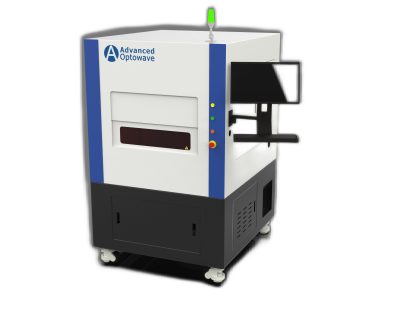

AOC1000 Compact Laser Micromachining System

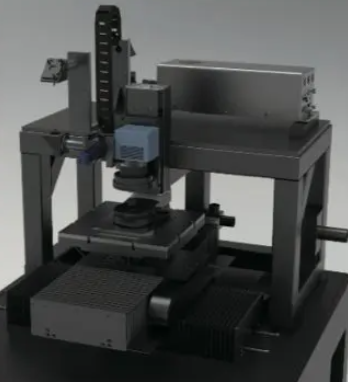

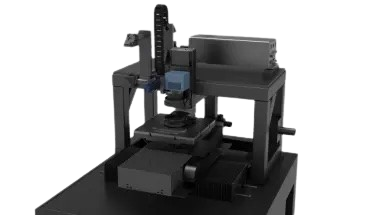

The AOC1000 is a compact laser micromachining system for processing various materials, such as metals, alloys, ceramics, PCDs, polymers, as well as FPC material. The platform can be integrated with multiple lasers and wavelengths, as well as a variety of motion stage options. The AOC1000 also offers a pro version which the precise motion stages were built on a granite base. The system is designed to achieve high precision laser micromachining.


Specifications AOC1000 Laser Micromachining System


Display and Operation

Data Interface

24″ display and keyboard

USB device, RS232

Size & Weight
Width 1200 mm (47.2 in.)
Depth 1370 mm (54 in.)
Height 1900 mm (74.8 in)
Weight 2200 lbs.
Area Necessary
Width 1700 mm (67 in.)
Depth 1870 mm (73.6 in.)
Height 2400 mm (94.5 in.)
Area (m²) 3.2 m²
Fuse 25 (A)
Nominal Voltage 220VAC ±10%
Nominal Frequency 50/60 Hz
Pneumatic Provision
Compressed Air 0.5-0.7 MPa
Precision Module
X/Y Axis Travel (mm) 300×300
Drive Linear Servo Drive
Positioning Accuracy (mm) ±0.003
Repeatability Accuracy (mm) ±0.001
Z-Axis Travel (mm) 60
Positioning Accuracy (mm) ±0.03
Repeatability Accuracy (mm) ±0.01
