AOPico Montauk  Picosecond DUV Laser

Features & Benefits

This is a water-cooled deep UV picosecond laser with output wavelength of 266 nm. With the industrial-leading harmonic generation technology and engineering design, it has high conversion efficiency, excellent long-term stability and long lifetime. The water-cooled design allows the laser to work reliably in various harsh and extreme environments and makes the laser to be the ideal candidate for the 7×24 non-stop production needs.

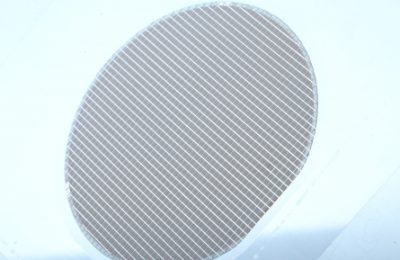

The output power is 3W with repetition rate of 200 k and 70 MHz available for selection. With the wide range of repetition rate, excellent beam quality (M2<1.2) and beam roundness (> 90%), it is the perfect candidate for various application areas, including peeling-off GaN from Sapphire, non-carbonized cold processing, glass grain lifting-off, chip inspection and so on.

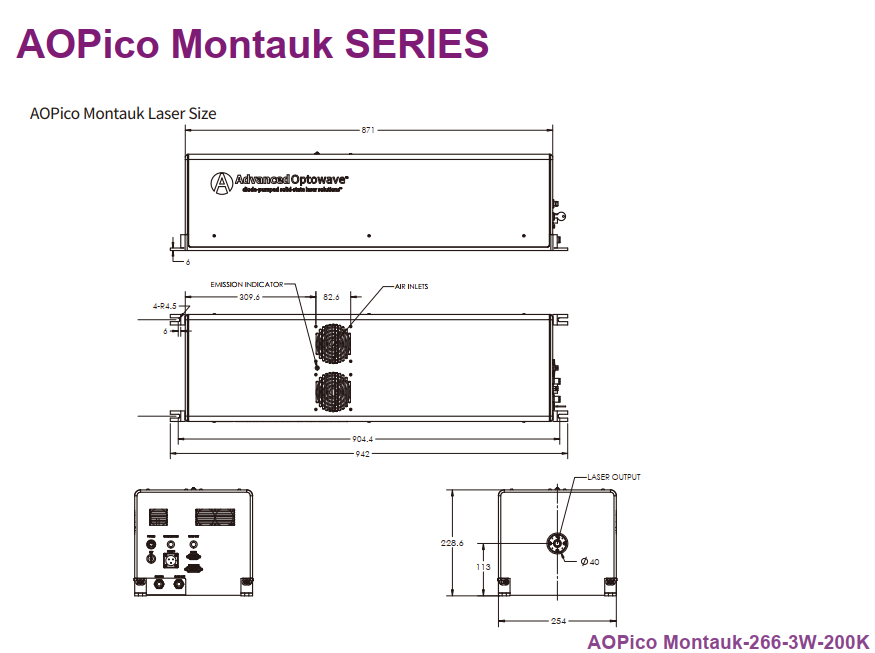

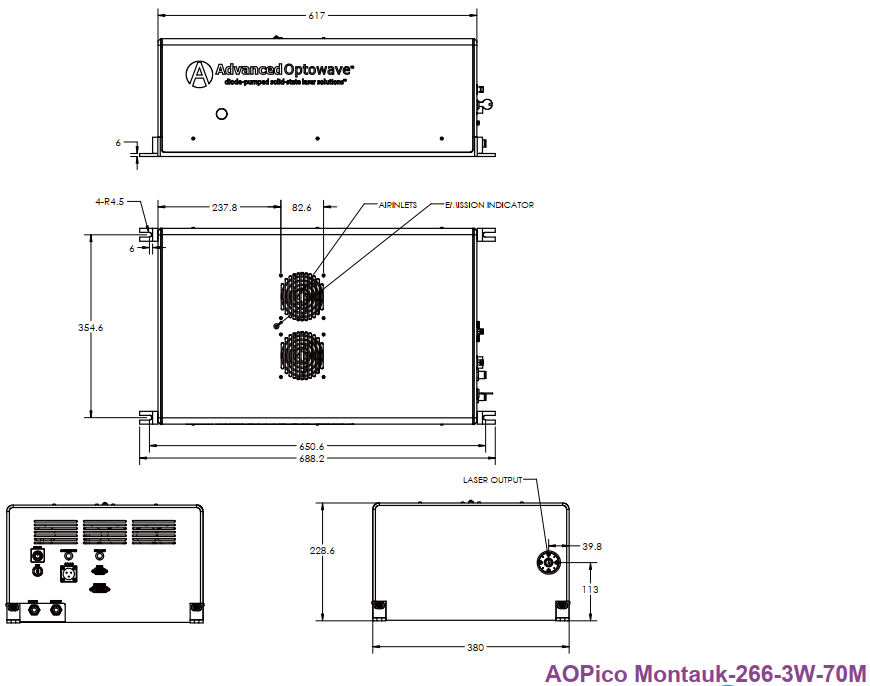

AOPico Montauk 266
Specification 3W – 200K 3W – 70M
Wavelength (nm) 266 266
Average Power (Watts) >3W >3W
Energy (µJ) >15@200KHz >0.043@70MHz
Specified Repetition Rate (kHz) 200kHz 70MHz
Repetition Rate (kHz) 100-200 70MHz
Pulse Width (ps) <12 <50
Beam Quality (M²) <1.5
Beam Roundness (%) >90
Beam Diameter (mm) ~2±20%
Beam Divergence (mRad) <1
Point Stability (µrad/°C) <20
Polarization Ratio 100:1 Linear, Horizontal
Pulse-to-Pulse Stability (% RMS) <3
Average Power Stability (% over 12 hours) <5
Cold Start Warm-Up (mins.) <40
Standby Warm-Up (mins.) <10
Operational Temperature Range (°C) 5-40°C
Operation Humidity Range (%) 20 to 80, non-condensing
Storage Temperature Range (°C) -20 to 50
Storage Humidity Range (%) 20 to 80, non-condensing
Input Voltage (VDC)/Rated Power(W) 24 / 600
Communication RS232
Cooling Water
Laser head (kg) 55

High Power Water Cooled 266nm DUV picosecond laser
