AONano Precision-532
Additional Information

Features & Benefits

This is the high-power version of our AONano Compact-532 laser series. The all-in-one design makes the laser more compact and reduces the total weight. It saves space for installation on the customer side, lowers the integration cost and simplifies the installation process. The water-cooled design allows the laser to work reliably in various harsh and extreme environments and makes the laser to be the ideal candidate for the 7×24 non-stop production needs.

The output power of 20W, 35W, and up to 50W are available for selection. With the world-leading harmonic generation techniques, it has the highest conversion efficiency. With excellent beam quality, wide repetition rate and flexible control method, it is the perfect candidate for various application areas, including FPC/PCB cutting, solar cell processing, wafer processing and so on.

AONano precision 532

AONano Precision 532
Specification  20W-50K 35W-50K 50W-200K
Wavelength (nm) 532
Average Power (Watts) >20W@50KHz >35W@50KHz >50W@50KHz
Energy (µJ) >400 >700 >1000
Specified Repetition Rate (kHz) 50
Repetition Rate (kHz) 10-300
Pulse Width (ns) <15 <22 <20
Beam Quality (M²) <1.2
Beam Roundness (%) >90
Beam Diameter (mm) ~0.85
Beam Divergence (mRad) <2
Point Stability (µRad/°C) <20
Polarization Ratio 100:1 Linear, Vertical
Pulse-to-Pulse Stability (% RMS) <2 <3
Average Power Stability (% over 12 hours) <3
Cold Start Warm-Up (mins.) <40
Standby Warm-Up (mins.) <10
Operational Temperature Range (°C) 15 to 35
Operation Humidity Range (%) 20 to 80, non-condensing
Storage Temperature Range (°C) -20 to 50
Storage Humidity Range (%) 20 to 80, non-condensing
Input Voltage (VDC)/Rated Power(W) 24/450 24/600 24/600
Power Consumption(W) <260 <310 <350
Communication RS232
Cooling Water
Laser head (kg) 20

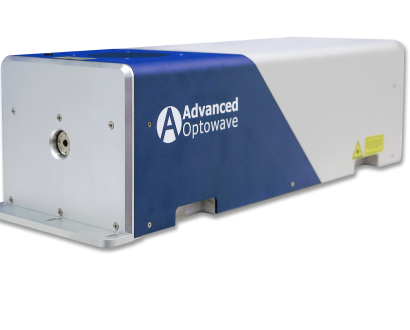

AONano Precison – 532
