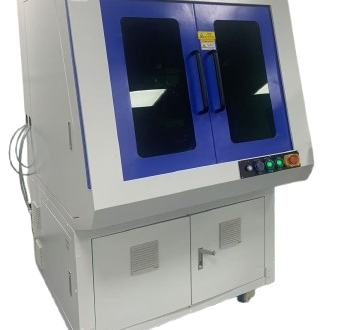

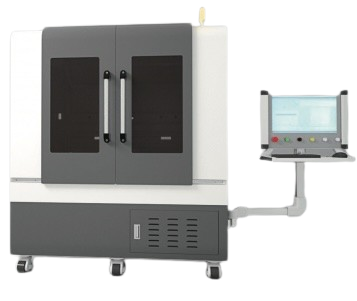

The AOC2000 is a highly integrated laser micro-processing system designed for both industrial and medical applications. The platform can be integrated with multiple lasers and laser wavelengths, as well as various motion stages options. Equipped with either off-axis or coaxial vision systems, high accuracy of laser beam positioning can be achieved.

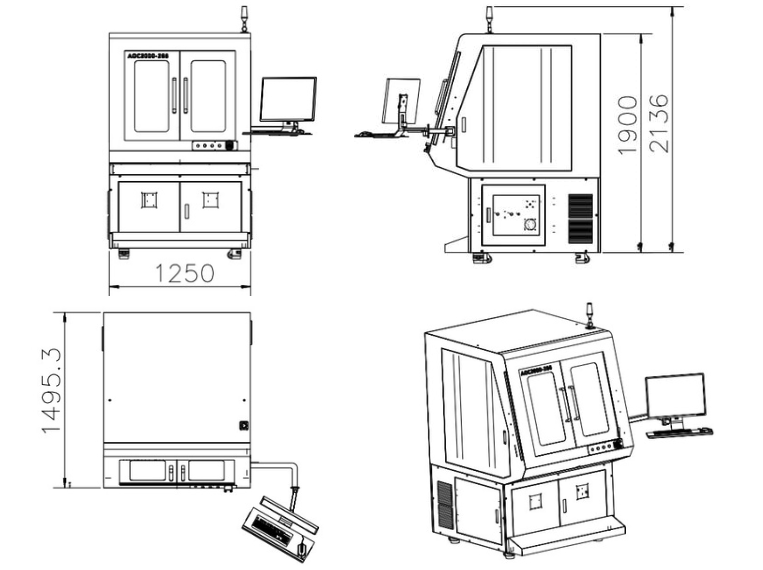

| SIZE & WEIGHT | AOC2000 |
|---|---|
| Depth | 1495mm (58.8 in.) |
| Height | 2136mm (84.1 in.) |
| Width | 1250mm (58.8 in.) |
| Weight | 2,700 lbs |
| AREA NECESSARY | |
| Depth | 1995mm (78.5 in.) |
| Height | 1750mm (68.9 in.) |
| Area (m2) | 3.5 m2 |

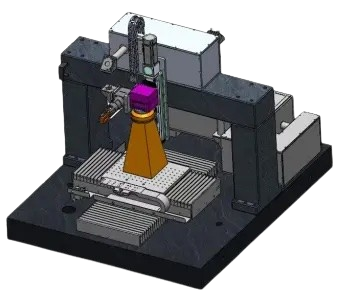

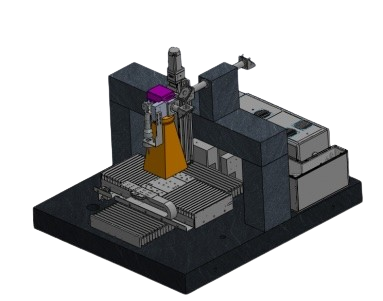

| POSITIONING AXIS | |
| X-axis | 350mm travel, 500mm/s |
| Y-axis | 350mm travel, 500mm/s |
| Z-axis | 200mm travel, 20mm/s |
| MAXIMUM WEIGHT OF WORK PIECE | |
| Max. Weight of Work Piece (incl. clamping) | 25 Kg |
| Max. Dimension of Work Piece | 300mm×300mm |
| ELECTRICITY | |
| Fuse | 25(A) |
| Nominal Voltage | 1P 220VAC |
| Nominal Frequency | 50/60Hz |
| PNEUMATIC PROVISION | |
| Fume extractor and compressed air system | 0.4-0.7 MPa |
| LASER SAFETY CLASS | |
| CDRH class 1 laser system enclosure | |
