AOC3000 Additional Information

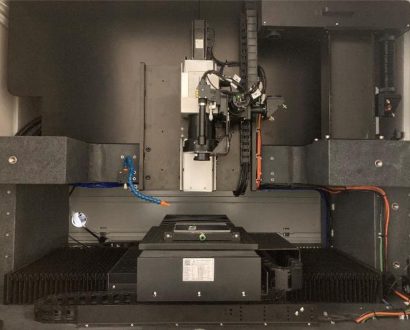

AOC3000 Laser Multi-function Processing System

The AOC3000 laser multifunction system is designed for general purpose laser micromachining applications, the platform can be integrated with multiple lasers and laser wavelengths, as well as variety of motion stage options. The system is designed to achieve and maintain high dimensional accuracy features, vision system either off-axis or co-axis CCD camera are available to ensure laser beam location and positioning accuracy.

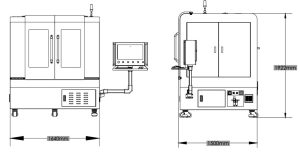

Size & Weight AOC3000
Depth 1500mm
Height 1922mm
Width 1640mm
Weight 4,000 lbs.

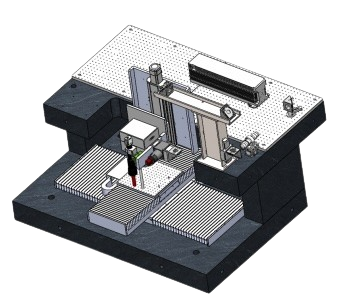

Precision module
X/Y axis travel range (mm) 400×400
Motor ironless linear motor
Positioning accuracy (mm) ±0.003
Repeatability (mm) ±0.001
Z axis travel (mm) 200
Positioning accuracy (mm) ±0.03
Repeatability (mm) ±0.01
Fuse 36(A)
Nominal Voltage 1P 220VAC
Nominal Frequency 50/60KHz
Pneumatic Provision
Fume extractor and compressed air system 0.4-0.7 MPa
Laser Safety Class
CDRH class 1 laser system enclosure
