Glass type and main properties

Glass materials play a pivotal role in numerous aspects of human life, owing to their distinctive characteristics such as transparency, durability, and adaptability. Their applications span a broad spectrum, encompassing macro-sized items like containers, windows, and displays, as well as micro-sized components such as micro-lenses, micro-sensors, and micro-fluidic devices. The versatility of glass is evident in its usage across various domains.

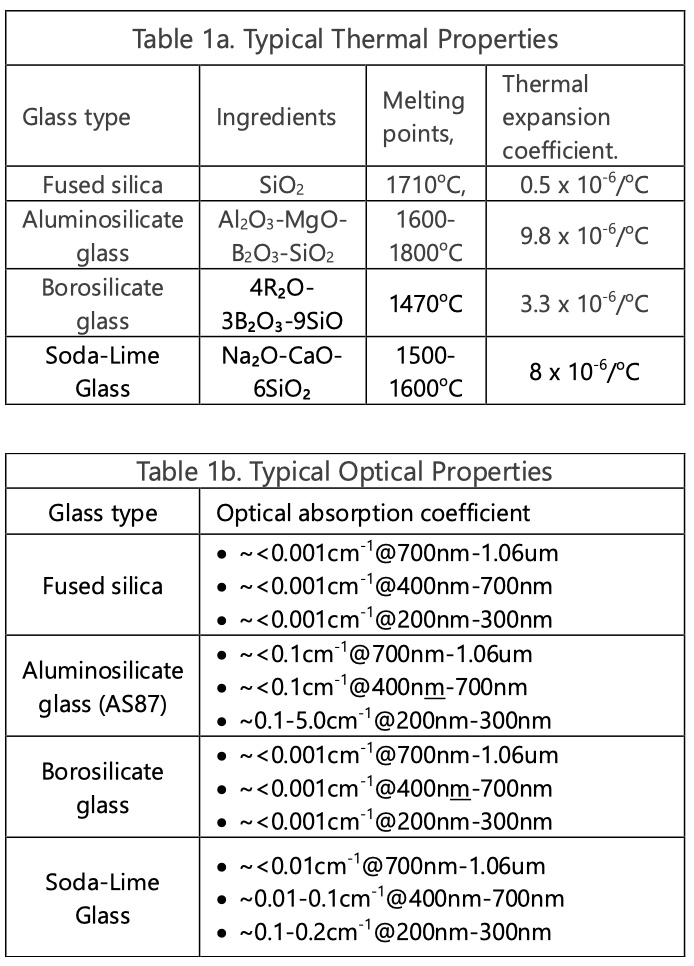

In response to specific requirements, diverse glass materials have been engineered. Examples include pure SiO2 quartz and fused silica, as well as SiO2 infused metal elements like Na, K, Al, etc. Table 1a/b provides a comprehensive overview of the fundamental thermal and optical properties of four commonly employed types of glass materials.

Contact Us

Examining these properties reveals that the glass materials exhibit fragility due to their exceptionally low thermal expansion behavior.

Simultaneously, their transparency across the UV to IR wavelength range results from the absence of absorption, making them ideal for a wide array of applications.

Laser Glass Micro-processing Technology

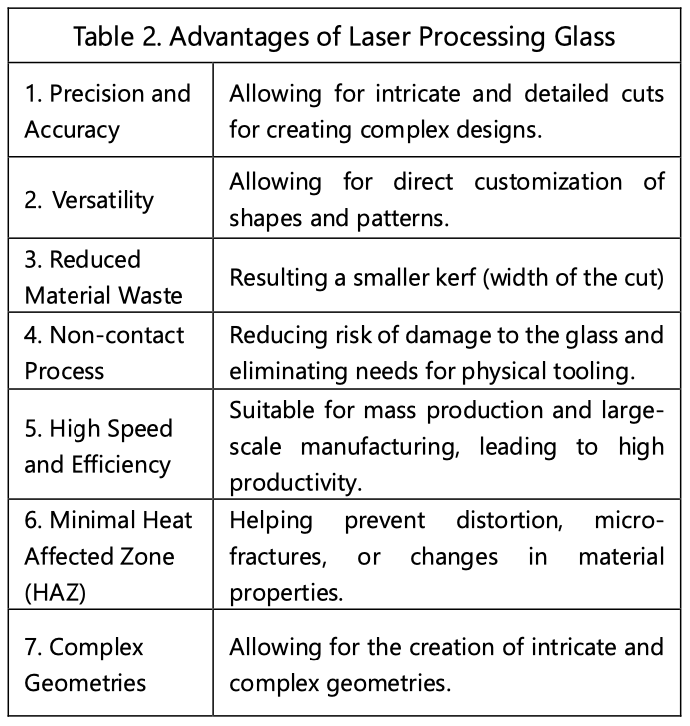

The utilization of laser technology in glass material processing has evolved over the past few decades, emerging as an essential technique for achieving precise and intricate tasks such as cutting, drilling, marking, and surface patterning. This application is particularly significant for relatively thin glass in the range of tens of micrometers to tens of micrometers. In contrast to traditional mechanical processing methods, laser processing has garnered increasing popularity across various industries, driven by several distinct advantages. These advantages are highlighted in Table 2, underscoring the superior capabilities of laser processing compared to conventional methods.


Within the realm of laser glass processing, this article specifically focuses on the technique of laser cutting glass using a variety of laser sources.

By showcasing practical examples, readers can gain valuable insights into Advanced Optowave’s expertise and technological capabilities in the field of glass cutting.

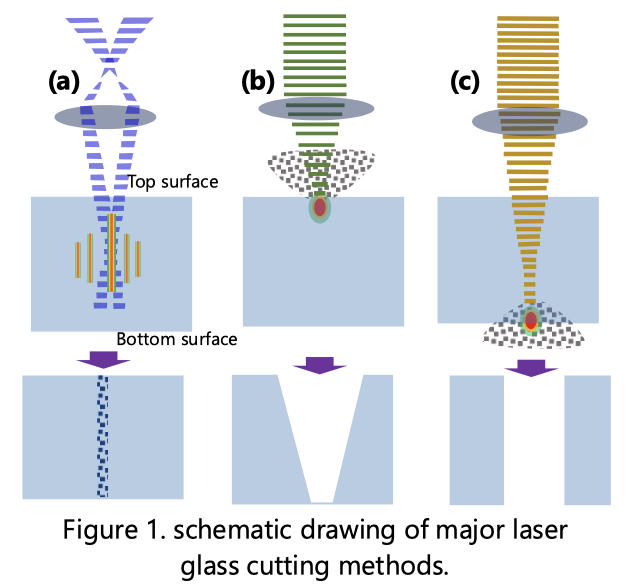

Targeting the unique challenges posted by the brittle and highly transparent properties of glass materials, a trio of laser glass cutting methods has emerged, each employing distinct mechanisms of laser interaction. These methods are categorized based on their approach to: (a) internal material modification (dicing), (b) ablation from the top surface (top-down ablation), and (c) ablation from the bottom surface (bottom-up ablation), as illustrated in Figure 1.

schematic drawing of major laser glass cutting methods

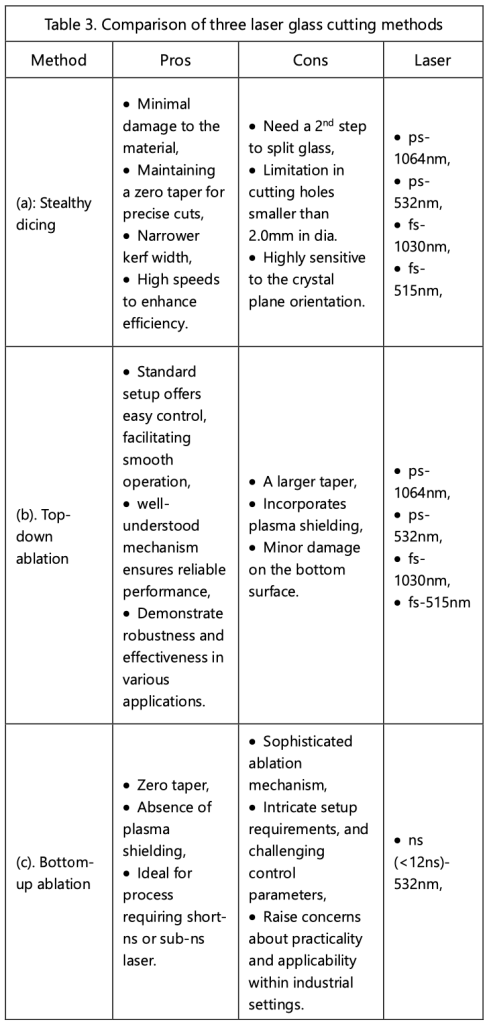

In table 3, technical details are presented to offer a comparative analysis of the pros and cons associated with each method, facilitating a comprehensive understanding of their operational intricacies and practical implications. For example, method-(a) utilizes a shaped laser beam (Bessel beam) to precisely damage the glass structure along the direction of the beams propagation. This method ensures minimal to no material loss from the base material during the process, which also known as laser stealthy dicing. Method-(b) involves the use of a focused laser beam to ablate material, starting from the top surface and progressing towards the bottom surface.

This technique, known as top-down ablation, efficiently removes material layer by layer.

In contrast, Method-(c) employs a focused laser beam to ablate material, starting from the bottom surface and progressing towards the top surface. This approach, known as bottom-up ablation, provides an alternative method for precise material removal offering distinct advantages in certain applications. After a decade of dedicated effort, each method has

Comparison of three laser glass cutting methods

Laser Glass Cutting Examples

In this section, we will highlight our significant accomplishments in processing diverse features in glass using the methods introduced earlier, leveraging suitable laser sources.

Case-1: Glass cutting using method- (a:dicing).

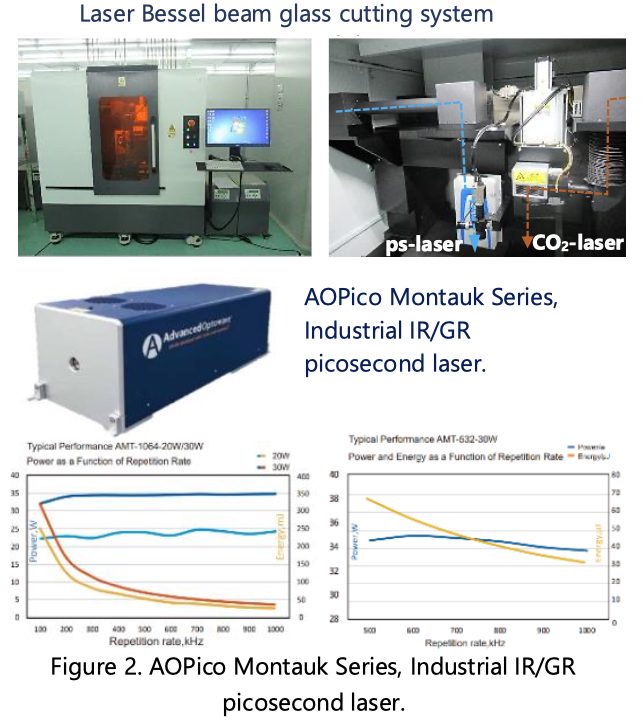

In this process, a focused ps-1064nm laser Bessel beam with an extended depth of focus of up to 20mm is utilized. The depth of focus directly correlates with the thickness of the glass to be cut. Moreover, achieving efficient cutting necessities higher laser power and burst pulse mode  to enhance the modification process. As previously mentioned, a secondary process is required to split the glass using CO2 laser heating due to the significant difference in thermal expansion between the original glass and modified glass. Figure 2 illustrates the Advanced Optowave’s industry glass laser stealthy dicing system, which employs either ps-1064nm or ps-532nm laser, depending on the application. However, unless there is a specific requirement, such as high reflection coating at 1064nm on the glass surface, the ps-1064nm on the glass surface, the ps-1064nm laser is typically preferred due to its higher power output.

AOPico Montaulk Series, Industrial IR/GR picosecond laser

View All AOPico Lasers

We would like to share some typical results of samples processed for industry customers.

Advanced Optowave has engineered a series of dicing modules tailored for precision cutting across varying thickness of glass. Each module is designed for a distinct depth of focus, enabling users to select the most suitable one according to the thickness of the glass being processed.

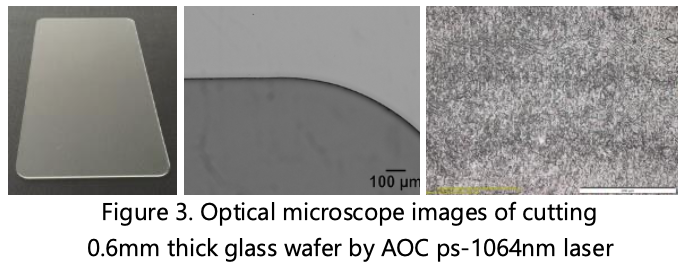

In Figure 3, optical microscope images depict the fine cutting of a 0.6mm thick mobile phone cover glass. Notably, the images reveal exceptionally sharp edges with chipping sizes <2um, and an absence of tapering, highlighting the module’s ability to achieve high-edge quality.

Optical microscope images of cutting 0.6mm thick glass wafer by AOC ps-1064nm laser

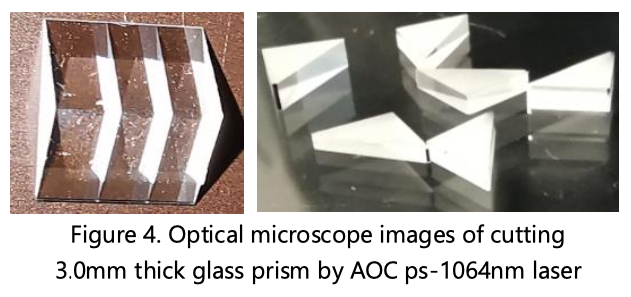

Figure 4 shows optical images of a 3.0mm thick prism, exemplifying flawless cutting that ensures superior device quality for micro-optics device applications. These images underscore the precision and reliability of Advanced Optowave’s cutting technology, essential for demanding optical applications.

Optical microscope images of cutting 3.0mm thick glass prism by AOC ps-1064nm laser

Case-2: glass cutting using method- (b: top-down ablation).

In this process, a laser beam is precisely focused on the material’s top surface, removing material layer by layer in a method known as normal laser ablation. For glass, which must absorb the laser light, this can occur through linear-absorption, defect-absorption, or nonlinear absorption mechanisms. Thus, for high-quality cutting, the ideal laser sources are either ns-UV laser (355nm) or Ultrafast laser (ps/fs laser).

Figure 5 illustrates Advanced Optowave’s standard high-precision laser ablation-based micro-processing system, capable of utilizing ns-lasers, ps-lasers, and fs-lasers, based on specific processing needs.

AOC laser micro-processing platform and lasers

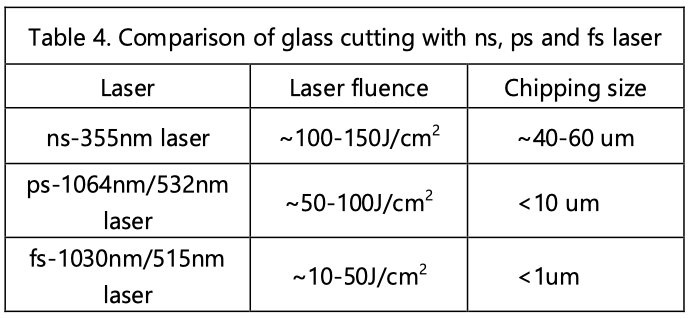

Table 4 summarizes Advanced Optowave’s study comparing glass cutting using ns-355nm, ps-1064nm/532nm, and fs-1030nm/515nm lasers.

Comparison of glass cutting with ns, ps, and fs laser

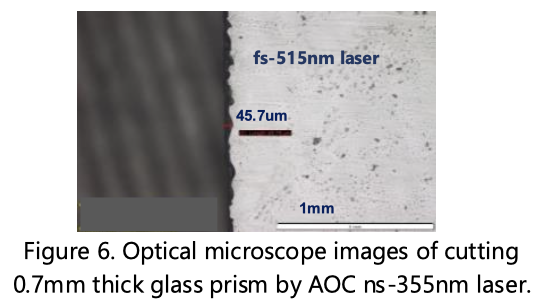

The lower linear absorption of glass at a 355nm wavelength can lead to unsatisfactory laser cutting quality. Therefore, ps or fs lasers care recommended for this type of top-down ablation-based glass cutting, utilizing multiphoton (non-linear) absorption to achieve precise and controlled material removal. In the provided examples, Figure 6 illustrates an optical microscope image of the cutting edge of Aluminosilicate glass using ns-355nm laser top-down direct ablation. The measured chipping size is approximately 45.7µm.

Optical microscope images of cutting 0.7mm thick glass prism by AOC ns-355nm laser

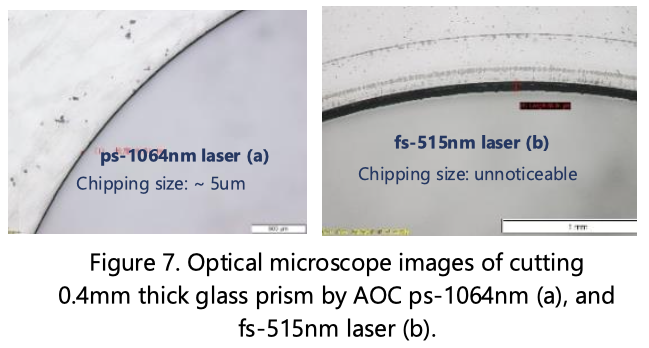

Figure 7a/b illustrate optical microscope image of the cutting edge of Aluminosilicate glass using ps-1064nm and fs-515nm laser, respectively. The measure chipping size is <5um with ps-1064nm laser and invisible with fs-515nm laser, respectively.

Optical microscope images of cutting 0.4mm thick glass prism by AOC ps-1064nm (a), and fs-515nm laser (b)

Thus, the top-down laser ablation technique excels in precision cutting of thin glass (<0.5mm), particularly when employing picosecond (ps) or femtosecond (fs) lasers, ensuring superior quality results.

Case-3: glass cutting using method- (c:bottom-up ablation).

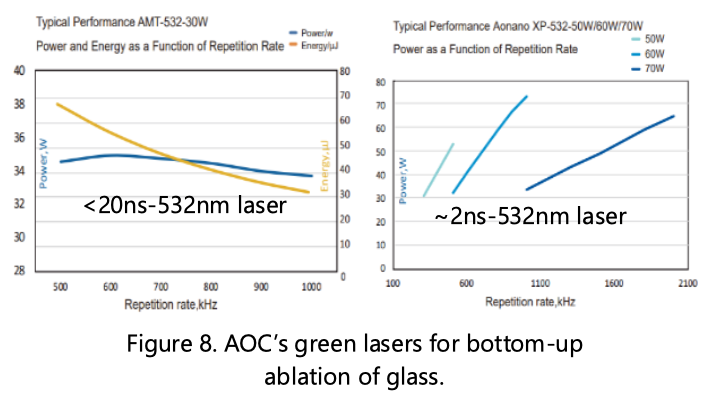

In contrast to top-down ablation, this process involves the transmission of a laser beam through the glass workpiece, focusing on the bottom surface. Material removal begins at the bottom surface, progresses upward, and ends at the top surface. Two conditions must be met for this process to successful. First, the laser must not be absorbed by the glass. Second, as indicated in Table 3, the ideal lasers for this type of process are either short ns-532nm, extremely short ns-532nm, or ps-532nm lasers. Figure 8 illustrates the laser specifications of Advanced Optowave’s ns-532 and sub-ns-532nm lasers, respectively.

AOC's green lasers for bottom-up ablation of glass

Unlike traditional direct linear and nonlinear absorption in top-down ablation, bottom-up ablation involves indirect absorption. This process is driven by the plasma induced by the previous pulse, leading to material removal.

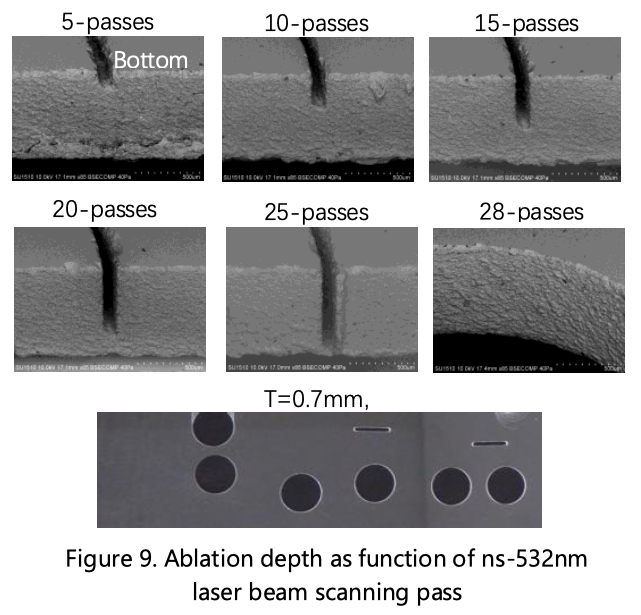

Figure 9 demonstrates the sequential process of bottom-up ablation using a ns-532nm laser, showcasing the change in ablation depth with each laser beam scanning pass. Notably, the ablated trench maintains a consistent kerf width from start to finish, resulting in a cutting cross-section with a frosted surface texture, free from observable cracking and chipping.

Ablation depth as function of ns-532nm laser beam scanning pass

In our observations, we have noted a significant correlation between the laser pulse width and the quality of cutting in this process. When the laser pulse width exceeds 12ns, we have observed that cracking of the glass begins at the cutting edge. This phenomenon is likely due to an increase in the thermal effect within the material.

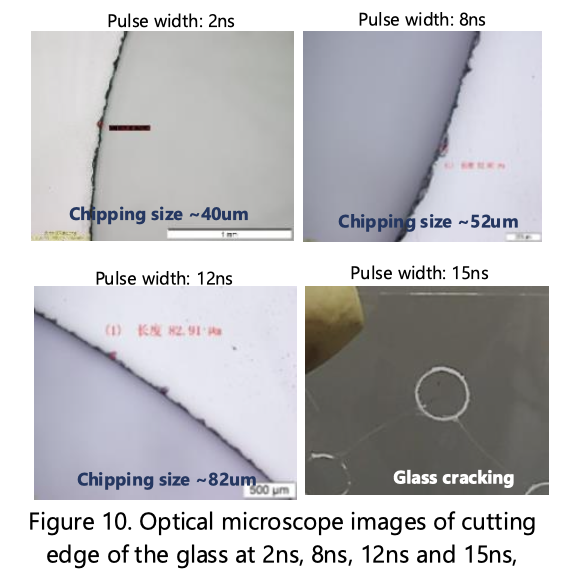

Figure 10 illustrates the optical microscope images of the cutting edges of 0.6mm thick aluminosilicate glass using 532nm laser at pulse with 2ns, 8ns, 12ns, and 15ns, respectively.

Optical microscope images of cutting edge of the glass at 2ns, 8ns, 12ns, and 15ns

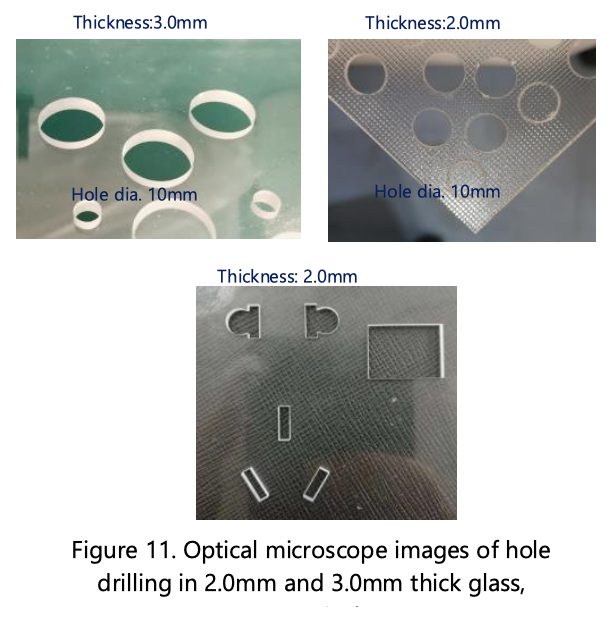

All evidence indicates that for cutting glass using the bottom-up pulsed 532nm laser ablation method, a shorter pulse width results in smaller chipping sizes. Therefore, for this process, a <12ns-532nm laser is recommended, particularly for processing small, close-loop features in thicker glass (>0.5mm) as shown in figure 11.

Optical microscope image of hole drilling in 2.0mm and 3.0mm thick glass

Summary: After a decade of collective efforts, Advanced Optowave has developed a comprehensive laser cutting solution for glass tailored to specific applications.
